Falcon Counter-UAV System

Overview

The Falcon (Hai Dongqing) Counter-UAV System, independently developed by Lakeda Radar, represents a new generation of UAV defense technology.
It integrates radar detection, radio frequency (RF) monitoring, EO (electro-optical) tracking, spectrum jamming, and GNSS spoofing to form a closed-loop defense chain — from detection to neutralization. The system is ideal for protecting critical sites such as military bases, government facilities, and vital infrastructure, ensuring reliable defense against a wide range of UAV threats.

Features

• Multi-sensor fusion: Combines radar, RF detection, and EO tracking for high detection accuracy.
• Closed-loop operation: From detection to countermeasure in one integrated workflow.
• GNSS spoofing & jamming: Effective against conventional and unconventional UAVs.
• High adaptability: Operates in fog, rain, and snow, with strong environmental resilience.
• Flexible modes: Manual and automatic operation, with configurable response schemes.
• Scalable & customizable: Frequency bands and power output can be tailored to mission requirements.

Subsystems

The Falcon system consists of detection and countermeasure components:

Detection

• Spectrum Monitoring
  Passive RF detection with >5 km range; receives and analyzes UAV communication signals without active emissions, minimizing exposure.

• Radar Detection
  X-band phased array radar capable of detecting UAVs at ≥5 km, pedestrians at ≥8 km, vehicles at ≥10 km, and vessels at ≥15 km. High angular accuracy with real-time scanning.

• EO Tracking
  AI-powered optical/thermal imaging with multi-target recognition and tracking.

  • Visible-light camera: ≥5 km detection, ≥3 km identification
  • Thermal imager: ≥1.5 km detection, ≥1 km recognition

Countermeasures

• Spectrum Jamming
  Emits blocking signals across multiple UAV control and video downlink bands (410 MHz – 6.2 GHz). Effective range ≤3 km.

• GNSS Spoofing
  Generates simulated navigation signals (GPS/Galileo/GLONASS/BeiDou). Effective radius 500–1000 m (customizable).

Control & Integration

• Centralized controller and management software.
• Real-time GIS mapping with black/white list management.
• Supports manual or automatic defense responses, including automatic countermeasure activation once a threat is confirmed.

System Components List

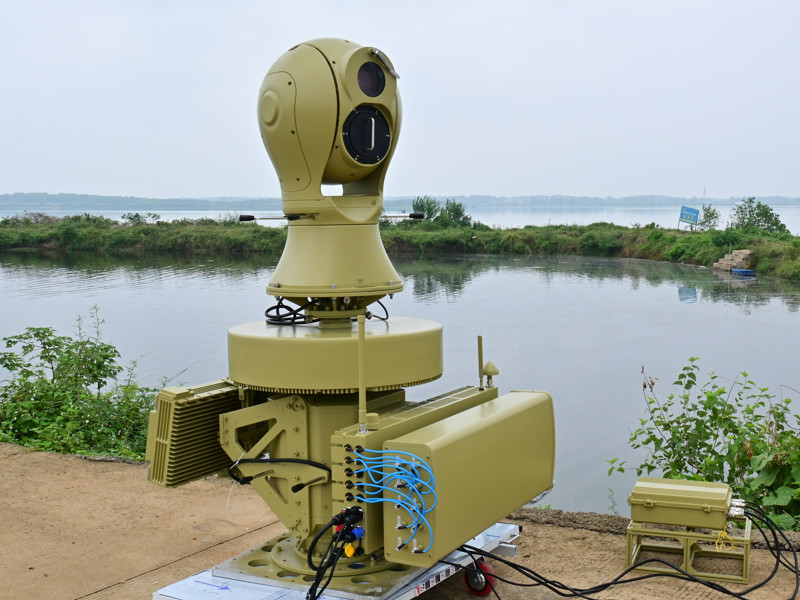

The Falcon system is delivered as a complete integrated package, including:

1. Main Host Unit – Core integrated chassis housing radar, RF, EO, jamming, spoofing, and controller modules.
2. Electro-Optical (EO) Module – High-resolution visible and thermal sensors with advanced AI tracking.
3. Radar Module – X-band phased array radar for long-range target acquisition.
4. RF Detection Module – Spectrum monitoring unit for passive UAV signal interception.
5. Spoofing Module – GNSS spoofing transmitter with adjustable output.
6. Jamming Module – High-power multi-band jammer targeting UAV control and video frequencies.
7. Directional Antennas – Dedicated antennas for RF jamming and spoofing.
8. Controller & Management Software – Centralized control platform with user-friendly interface.
9. Servo Pan-Tilt Unit – Precision gimbal with fast response for EO sensors.
10. Mounting Accessories – Hardware kits for fixed installation.
11. User Manual & Warranty Card – Documentation for deployment and maintenance.

System Parameters

Detection Performance

• Detection radius: ≥5 km
• Spectrum range: 70 MHz – 6 GHz
• Radar: X-band phased array, 5–15 km depending on target type
• EO tracking: visible light up to 5 km, thermal up to 1.5 km

Countermeasure Performance

• Jamming distance: ≤3 km
• Jamming bands: multiple (410 MHz – 6.2 GHz)
• GNSS spoofing: GPS/Galileo/GLONASS/BeiDou, ≥1 km radius

Mechanical & Environmental

• Wind resistance: up to Level 10
• Operating temperature: -40°C to +55°C
• Protection: IP65, humidity ≤95%
• Power: ≤550 W (detection), ≤1950 W (countermeasure)
• Weight: ~250 kg
• Dimensions: 850 × 850 × 1700 mm
